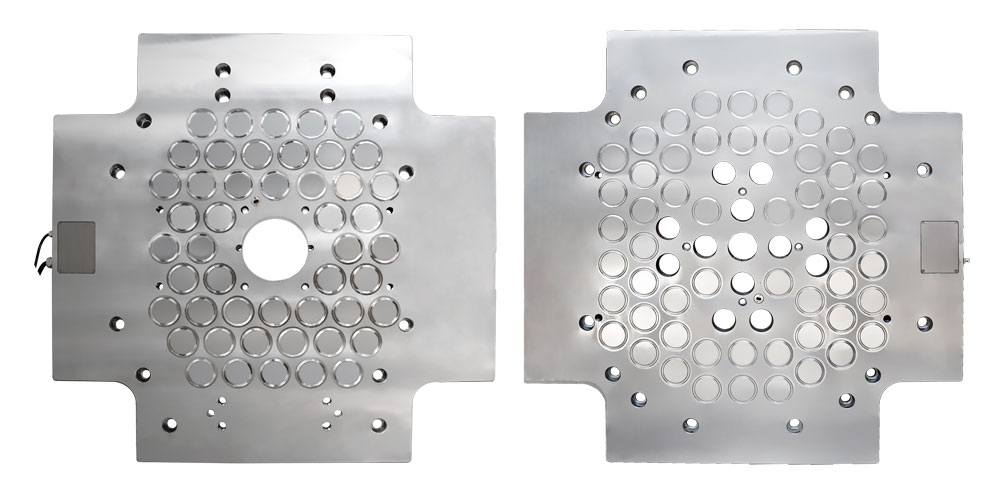

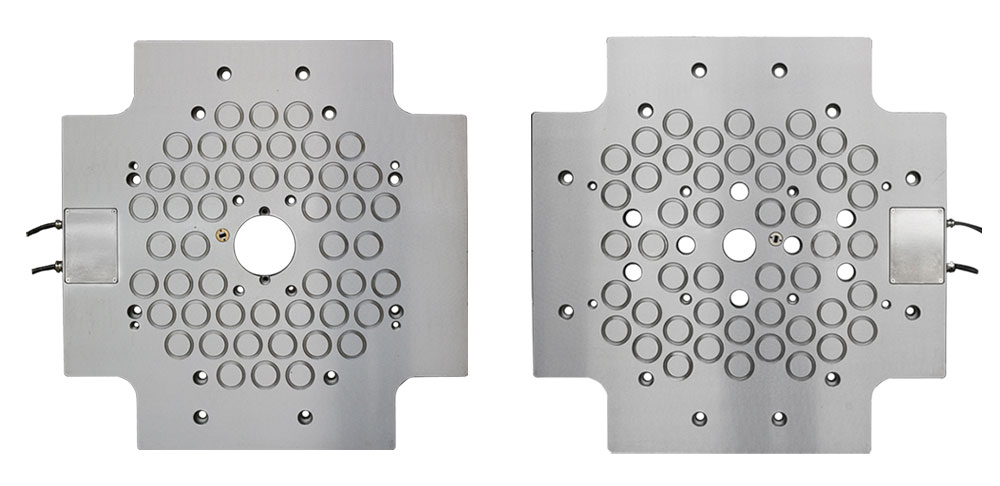

Magnetic Movable Platen

Magnetic Quick Mold Change System

Magnetic Fixed Platen

Magnetic Quick Mold Change System
Mold Change, 3 Min. Done!
HOME / Products / Magnetic Quick Mold Change System

Magnetic Quick Mold Change System

Download PDF   Send Inquiry

Application


IMM
Model
Unit
Movable platen size(mm)
Clamping force movable platen(KN)
Fixed platen size(mm)
Clamping force fix platen(KN)
60T
HQMC-60-T1
set
470*470*35
49
470*470*35
42
90T
HQMC-90-T1
set
540*540*35
77
540*540*35
77
120T
HQMC-120-T1
set
615*615*35
98
615*615*35
90
160T
HQMC-160-T1
set
730*600*35
126
730*570*35
120
200T
HQMC-200-T1
set
770*770*35
182
770*770*35
168
250T
HQMC-250-T1
set
840*840*46
209
840*840*46
190
280T
HQMC-280-T1
set
940*950*46
247
940*940*46
209
320T
HQMC-320-T1
set
990*990*46
266
990*990*46
247
380T
HQMC-380-T1
set
1046*1046*46
323
1060*1066*46
285
470T
HQMC-470-T1
set
1090*1180*46
399
1090*1180*46
342
530T
HQMC-530-T1
set
1240*1250*46
456
1240*1250*46
399
600T
HQMC-600-T1
set
1260*1280*46
475
1260*1280*46
418
650T
HQMC-650-T1
set
1340*1340*46
520
1340*1340*46
455
700T
HQMC-700-T1
set
1350*1400*46
551
1350*1400*46
494
750T
HQMC-750-T1
set
1510*1440*46
600
1510*1440*46
525
850T
HQMC-850-T1
set
1590*1590*46
680
1590*1590*46
595
900T
HQMC-900-T1
set
1580*1600*46
722
1580*1600*46
627
1000T
HQMC-1000-T1
set
1650*1700*46
798
1650*1700*46
703
1200T
HQMC-1200-T1
set
1871*1771*46
950
1871*1771*46
836
1300T
HQMC-1300-T1
set
1975*1875*46
1026
1975*1875*46
912
1400T
HQMC-1400-T1
set
2072*1972*46
1121
2072*1972*46
969
1500T
HQMC-1500-T1
set
2090*1990*46
1190
2090*1990*46
1050
1600T
HQMC-1600-T1
set
2200*2100*46
1254
2200*2100*46
1102
1850T
HQMC-1850-T1
set
2310*2210*46
1463
2310*2210*46
1292
2100T
HQMC-2100-T1
set
2540*2340*46
1596
2540*2340*46
1368
2400T
HQMC-2400-T1
set
2760*2482*46
1805
2760*2482*46
1558
2800T
HQMC-2800-T1
set
2822*2622*46
2109
2822*2622*46
1824
3300T
HQMC-3300-T1
set
3086*2806*46
2470
3086*2806*46
2147
4000T
HQMC-4000-T1
set
3322*2922*46
2983
3322*2922*46
2584
